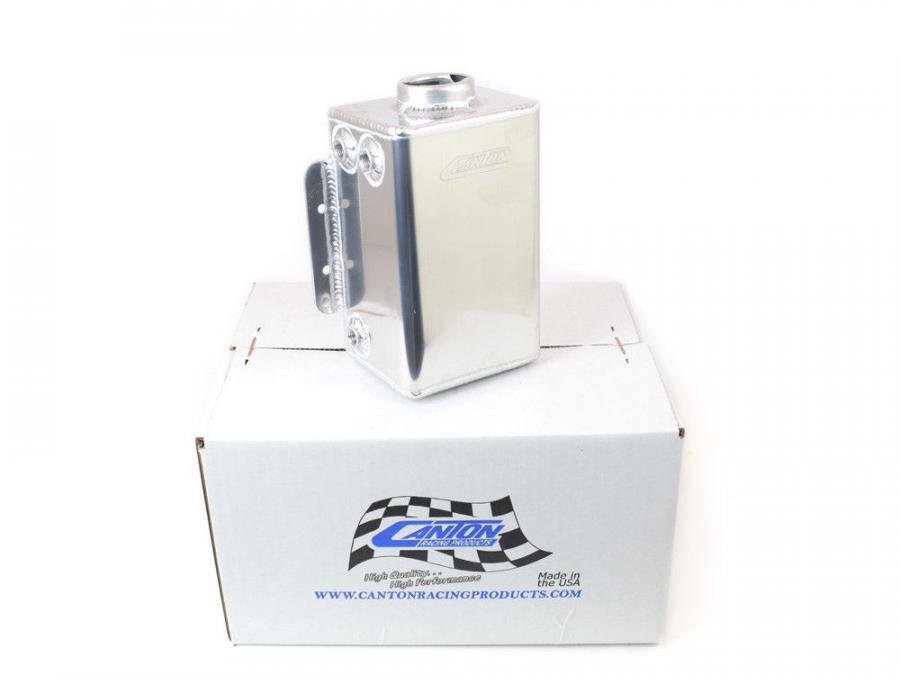

Canton Racing coolant recovery/overflow catch/fill tanks serve a variety of needs. This selection of tanks can be used as general catch cans to capture any overflow of fluid. Connecting the radiator overflow into the bottom port, the tanks may also be used as fill points and reservoirs for any fluid system. Crafted from aluminum, Canton Racing offers a choice of sizes, shapes, and capacities to suit your vehicle application—even a machined tube-style that's perfect for tight quarters on your hot rod or classic ride.
Recirculating:Yes
Overflow Tank Material:Aluminum
Overflow Tank Finish:Natural
Shape:Rectangular
Capacity:2 quarts
Length (in):4.000 in.
Width (in):5.000 in.
Height (in):8.000 in.
Vented:Yes
Drain Valve Included:Yes
Inlet Quantity:One
Inlet Attachment:Female threads
Inlet Size:1/4 in. NPT
Outlet Quantity:One
Outlet Attachment:Female threads
Outlet Size:1/4 in. NPT
Overflow Tank Mounting:Bolt-in
Mounting Hardware Included:Yes
Quantity:Sold as a kit.
Notes:Includes vented cap, petcock, and two 5/16 in. barbed by 1/4 in. NPT fittings. One 90 degree and one straight. Sight tube on side to check level. Dimensions listed are for the tank body only.
