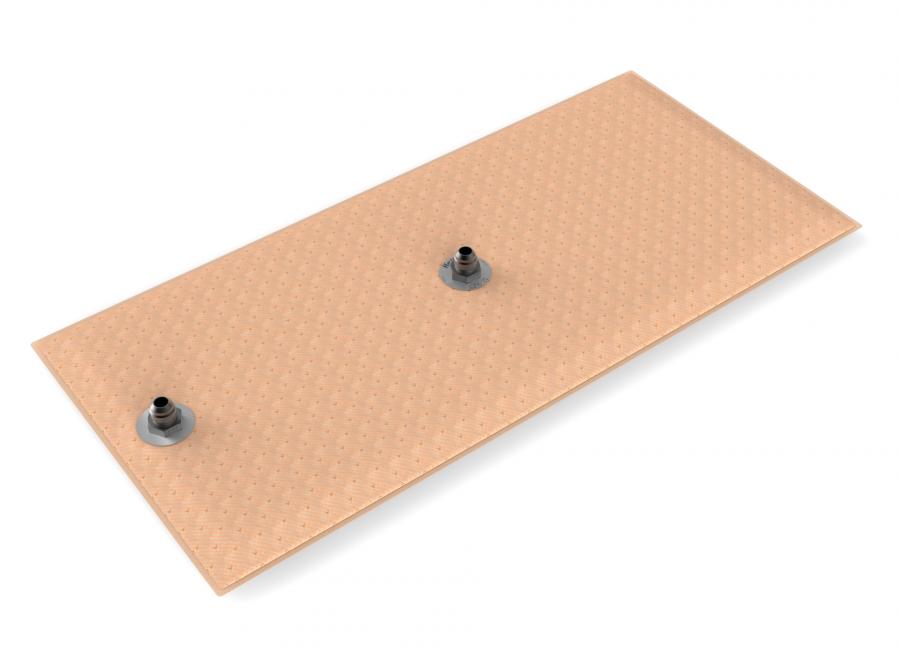

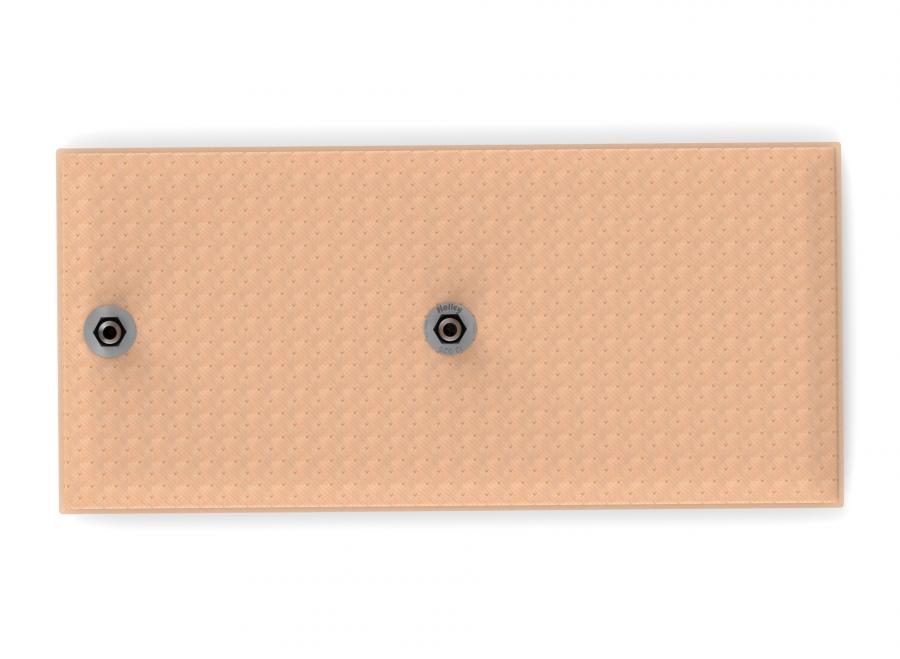

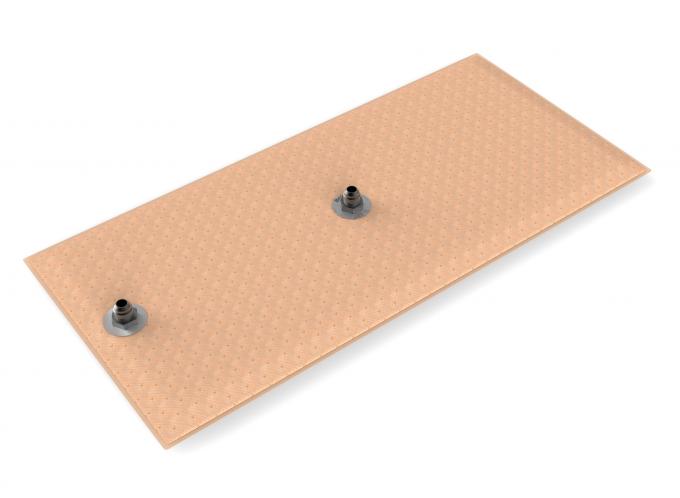

Holley 30" X 14" HydraMat®, Rectangle, Road Course or Circle Track 12-925-1

Name: Holley 30" X 14" HydraMat®, Rectangle, Road Course or Circle Track 12-925-1
Brand: Holley Performance Products
SKU: 4951542
Price: 1729.99 CAD
Availability: InStock

$1,729.99 ea

NEWARRIVING SOONEstimated Ship Date 01/07/2025 (If Ordered Today)25 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/21/2024

Model: 4951542

0 reviewsWrite a Review Add to Wish List

CALL US
855.444.6872

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution! Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.

Features:

Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells
Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling
Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions
Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered
As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available
Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions
Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity
Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump
Can be folded and compressed for easy installation through a variety of fuel cell openings

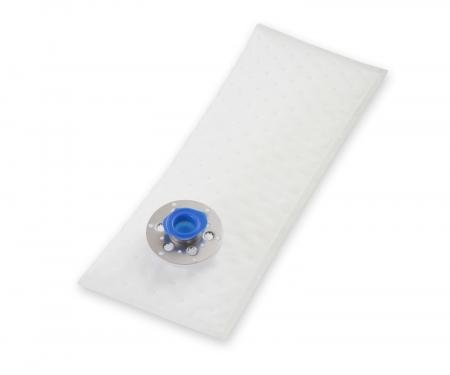

HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells
Works with Alcohol, Ethanol, Methanol, and E-85 fuels
Works with 2-cycle oil blends as high as 20:1
Not for use with most oils (see previous point for exceptions)
Not for use with diesel fuels

Fitting location designed for road course or circle track use

Spec part for ARCA racing series

Designed to fit flat bottom rectangular style fuel cells with minimum dimensions of 30" long and 14" wide

For best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat.

12-925 not compatible with Diesel fuel, Methanol or oils. Other part numbers available soon with Methanol compatibility

Mat should be installed with the side fitting on the "passenger" side of the vehicle. If the intended use is road course, cap the side fitting and connect to the center fitting. If intended use is circle track, cap the center fitting and connect to the side fitting.

Installation Notes:

Fitting location designed for road course or circle track use

Spec part for ARCA racing series

Designed to fit flat bottom rectangular style fuel cells with minimum dimensions of 30" long and 14" wide

For best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat.

12-925 not compatible with Diesel fuel, Methanol or oils. Other part numbers available soon with Methanol compatibility

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
