Mr. Gasket Fuel Block with 0-15 PSI Fuel Pressure Gauge 1560

Name: Mr. Gasket Fuel Block with 0-15 PSI Fuel Pressure Gauge 1560
Brand: Mr. Gasket
SKU: 4010872
Price: 93.99 CAD
Availability: InStock

$93.99 ea

NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024

Model: 4010872

0 reviewsWrite a Review Add to Wish List

CALL US
855.444.6872

Description Specifications Reviews (0) Product Q&A Related Products

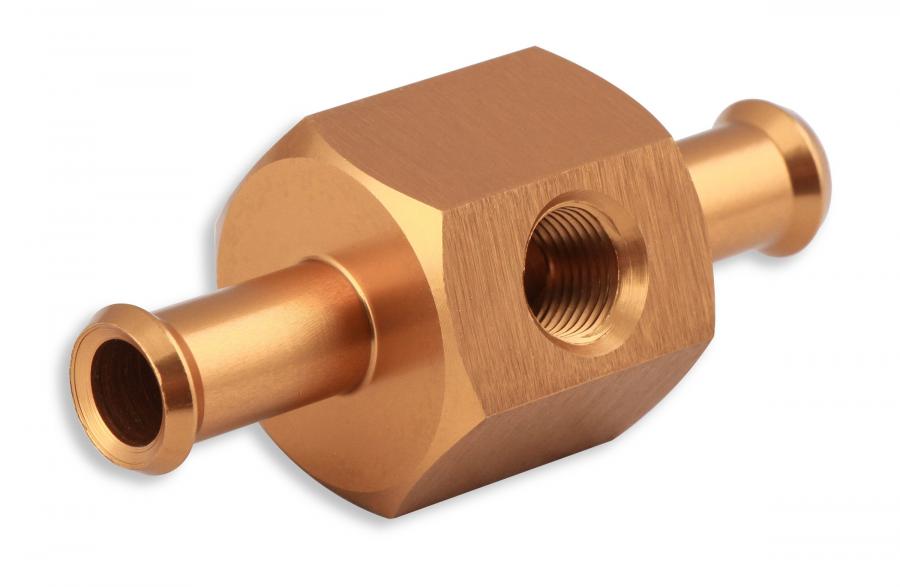

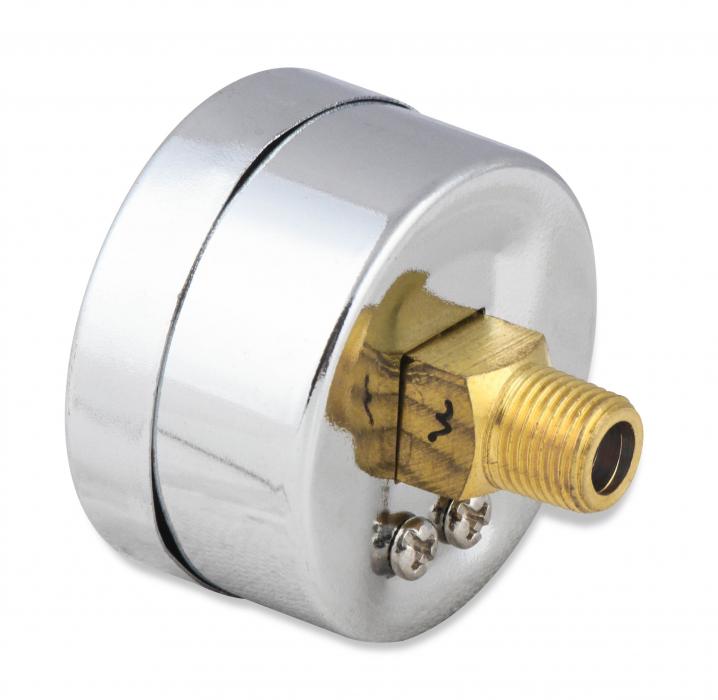

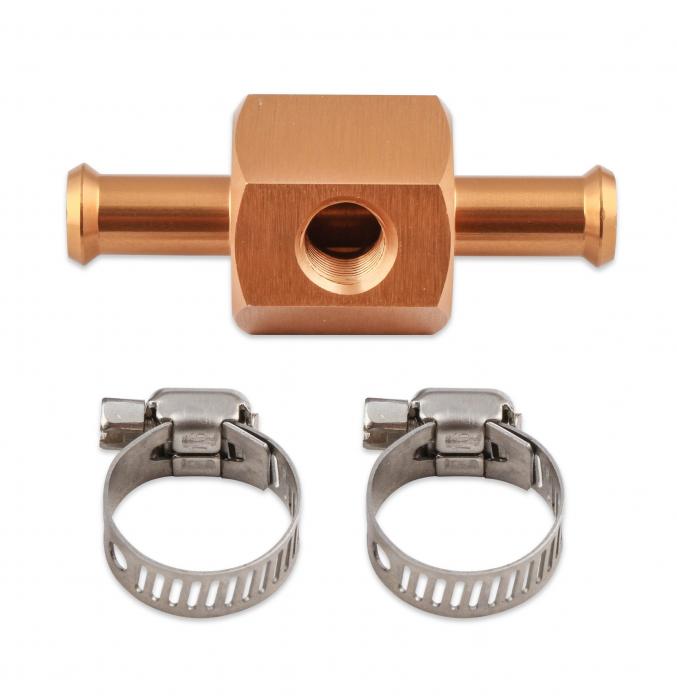

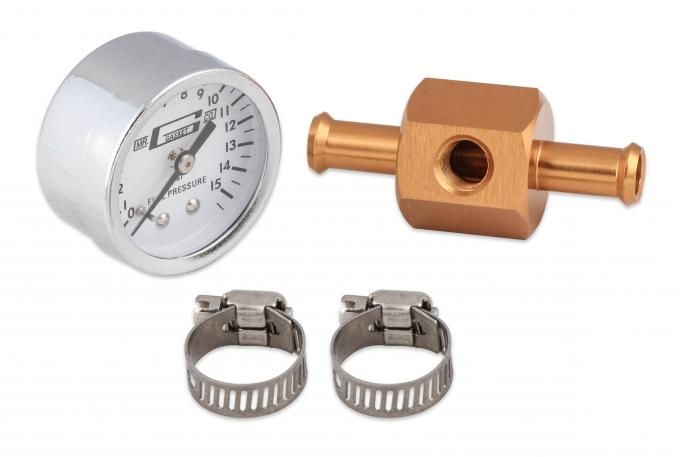

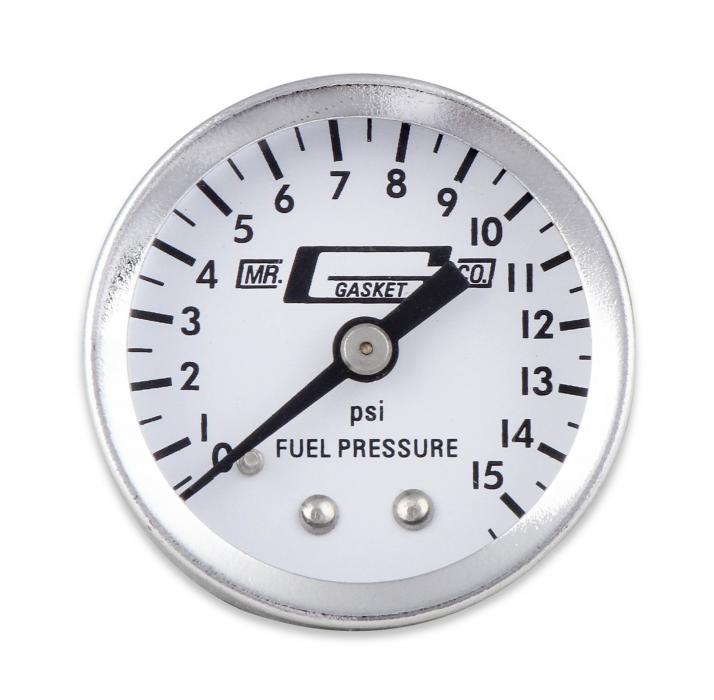

Allows you to easily install a fuel pressure gauge in-line almost anywhere. This gold anodized aluminum fuel block has 3/8 inch hose barb on inlet and outlet. It comes complete with a 1-1/2 inch diameter gauge with 1/2 PSI (pounds per square inch) increments and a range of 0-15 PSI Includes two hose clamps for quick installation.

Features:

Pressure Gauge Reading From 0-15 Pounds
Inline Fuel Block
Gold Anodized
Fits 3/8" Fuel Hose
Clean and simple installation

Specifications:

Adapter NPT Size ( A )	1/8 NPT MALE
Diameter	1.5"
Emission Code	5
Finish	Gold Anodized
Function	Analog
Gauge Background Color	White
Gauge Bezel Color	Silver
Gauge Range	Up to 15 PSI
Gauge Type	Fuel Pressure
Gauge Writing Color	Black
Glycerin Filled	No
Hose Barb	3/8"
Inlet	1/8NPT
Liquid Filled	No
Male Thread	1/8" NPT
Material	Aluminum & Steel
Max Pressure	15psi
Part Type	Fuel Pressure Gauge
Pressure Range	0-15 PSI
Product Type	Fuel Pressure Gauge
Proposition 65	www.P65Warnings.ca.gov
Size	1-1/2"
Style	Analog
Warranty	Limited 90 Day Warranty TX, Limited 90 Day
Weight	0.5600
