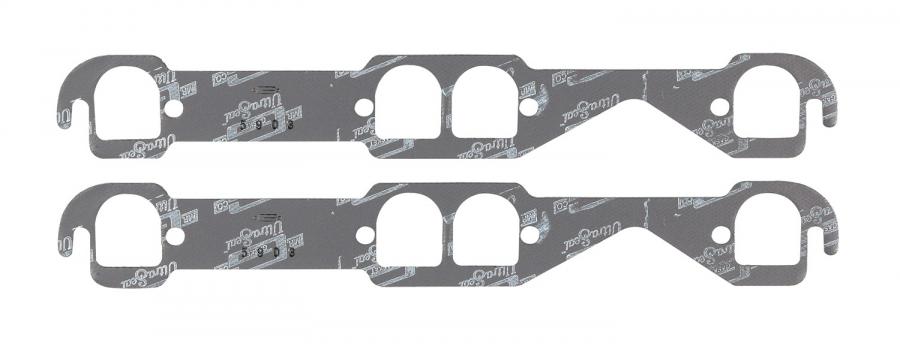

Mr. Gasket Ultra-Seal Header Gaskets 5903

Mr. Gasket Ultra-Seal Header Gaskets 5903
$57.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)72 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024
Model: 4011851
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features:
  • Manufactured from high-temperature steel core/graphite faced exhaust material
  • Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
  • Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
  • Conforms to and seals minor surface irregularities
  • Can be trimmed if necessary for modified port applications
  • For OE replacement, high performance street, drag race and oval track use

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Chevy II 1963 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Chevy II 1964 4.6L / 283 / V8 ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Chevy II 1965 5.3L / 327 / V8
4.6L / 283 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Chevy II 1966 5.3L / 327 / V8
4.6L / 283 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Chevy II 1967 5.3L / 327 / V8
4.6L / 283 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Chevy II 1968 5.3L / 327 / V8
5.0L / 307 / V8
5.7L / 350 / V8
5.4L / 327 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1969 5.0L / 307 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1970 5.0L / 307 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1971 5.0L / 307 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1972 5.0L / 307 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1973 5.0L / 307 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1974 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1975 5.7L / 350 / V8 ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1976 5.0L / 305 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1977 5.0L / 305 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1978 5.0L / 305 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;
Chevrolet Nova 1979 5.0L / 305 / V8
5.7L / 350 / V8
ULTRA SEAL; EXHAUST GASKET SET; BRODIX D-SHAPED PORT; PORT DIMENSIONS W-1.55 IN. X H-1.71 IN.;

Specifications:

Collector Gaskets Included No
Emission Code 5
Engine Chevrolet Small Block Gen I
Gasket Line Ultra-Seal
Material Ultra-seal
Part Type Exhaust Manifold Gasket Set
Port Shape D-Port
Port Size 1.55" x 1.71"
Product Type Header Gaskets
Proposition 65 www.P65Warnings.ca.gov
Thickness .062"
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.3800

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

Mr. Gasket Ultra-Seal Header Gaskets 5903:

Frequently bought together

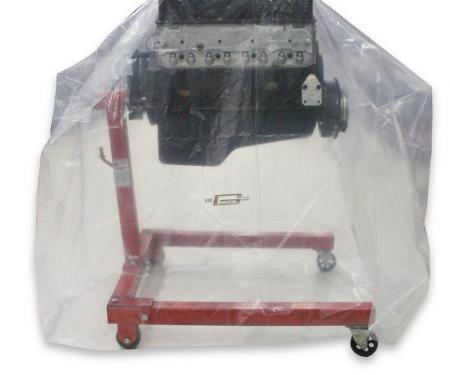

Mr. Gasket Engine Storage Bag 33260G
