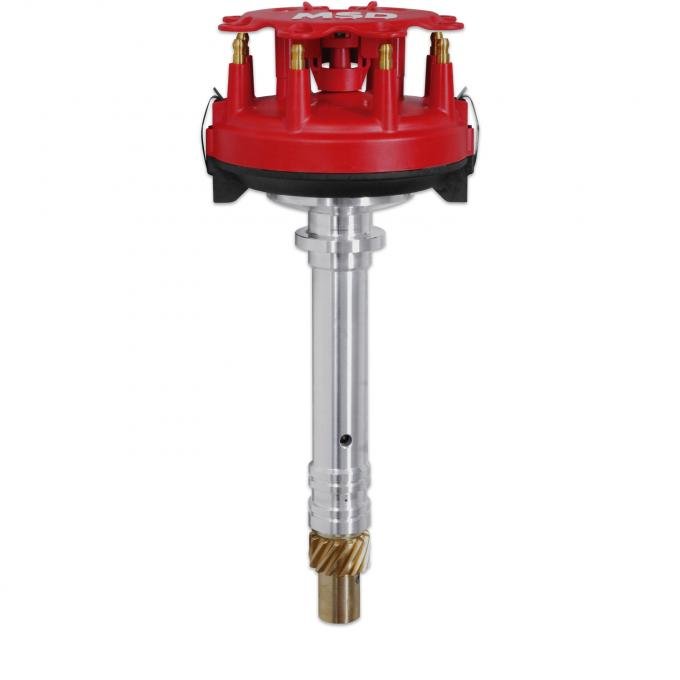

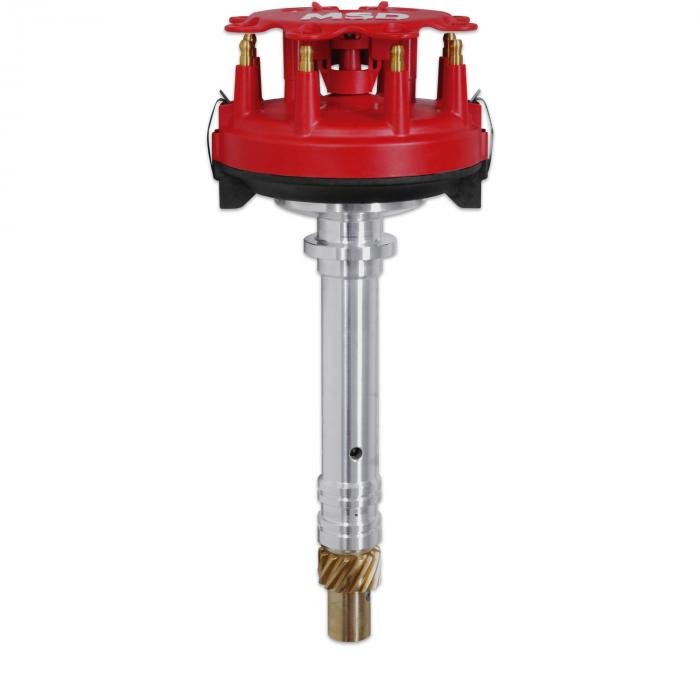

MSD Chevy V8 Crank Trigger Distributor 84697

MSD Chevy V8 Crank Trigger Distributor 84697
MSD Chevy V8 Crank Trigger Distributor 84697
$607.99 ea
NEWARRIVING SOONEstimated Ship Date 11/18/2024 (If Ordered Today)54 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/30/2024
Model: 4953326
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing.
Features:
  • Designed to fit low in the block to clear firewall and intake combinations
  • Supplied with bronze gear
  • Supplied with large diameter HEI style distributor cap and rotor
  • Must be used with an MSD Crank Trigger and MSD Ignition Control
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra long sintered bushing
  • Oversized polished steel shaft with a QPQ coating for friction reduction
  • CNC machined billet aluminum housing and Dupont Rynite base

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
2357_add.pdf57.24KB
frm28841.pdf111.16KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Chevrolet Chevy II Nova 1968 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1963 4.6L / 283 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1964 4.6L / 283 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1965 4.6L / 283 / V8
5.4L / 327 / V8
5.3L / 327 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1966 4.6L / 283 / V8
5.4L / 327 / V8
5.3L / 327 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1967 4.6L / 283 / V8
5.3L / 327 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Chevy II 1968 5.4L / 327 / V8
5.7L / 350 / V8
5.3L / 327 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Base 1969 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Base 1970 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Base 1971 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Base 1972 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Base 1973 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova Custom 1973 5.0L / 307 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1969 5.7L / 350 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1970 5.7L / 350 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1971 5.7L / 350 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1972 5.7L / 350 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1973 5.7L / 350 / V8
5.0L / 307 / V8
Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;
Chevrolet Nova 1974 5.7L / 350 / V8 Crank Trigger Distributor; Incl. Distributor Cap/Rotor/Bronze Gear; Low Profile; Billet; Chevrolet V8;Not Legal For Use Or Sale On Pollution Controlled Vehicles;

Specifications:

Emission Code 4
Package Quantity 1
Part Type Distributor
Product Type Distributor
Proposition 65 www.P65Warnings.ca.gov
Qty 1
Warranty Limited 1 Year Warranty
