1968-69 Camaro, 68-74 Nova Tubular Arms, Front Double Adjustable Coil Overs, Rear Double Adjustable Shocks, Front & Rear Sway Bars, 2" Drop Leaf Springs & Adjustable Shocks, 4 Wheel 11" Disc Brakes with Master & Valve Combo

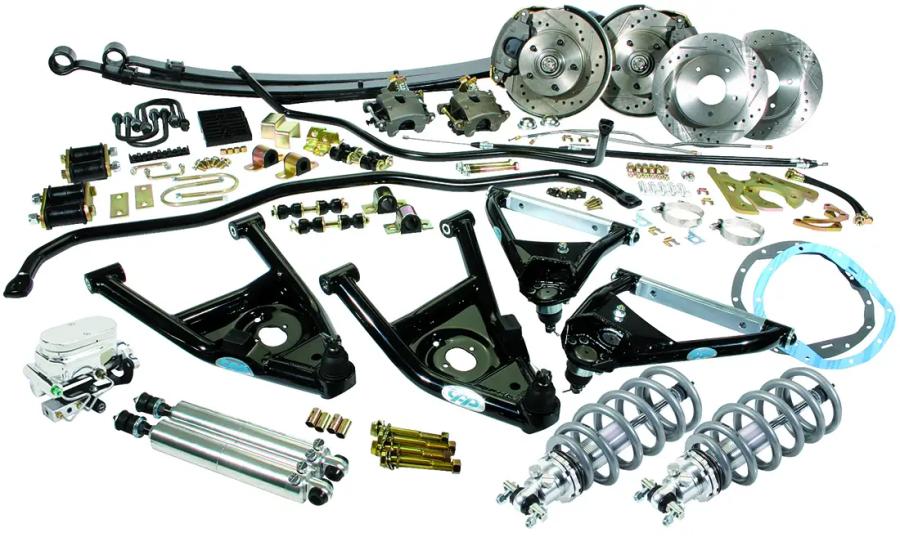

The Pro-Touring Kit - Stage 3 for the 1968-69 Chevy Camaro and 1968-74 Chevy Nova is the ultimate upgrade for enhanced performance and handling. This comprehensive kit includes tubular upper and lower arms, front double adjustable coilovers with a spanner wrench and thrust bearing kit for precise adjustments, and front & rear sway bars for improved stability. The rear suspension features 2" drop leaf springs paired with adjustable shocks for a perfect ride. Additionally, the kit includes 4-wheel 11" disc brakes with a master cylinder and valve combo for exceptional braking power. This package is designed to maximize your vehicle’s performance while offering a custom fit for your specific model.
P/N: 6774TCA-ULK-B Description: 1967-69 Chevy Camaro, 68-74 Chevy Nova Totally Tubular Upper and Lower Contorl Arms with Ball Joints and D Spec Bushings Quantity: 1-
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make
Model
Years
Chevrolet
Chevy II
1968
Chevrolet
Nova
1969 - 1974
Specifications:
Bolt Pattern
5X4.75
Brand
CPP PTK
Caliper Color Choices
Powder Coated Black, Powder Coated Red
Default Caliper Color
None-Caliper Upgrade Available
Default Front Spring
Double Adjustable Coil Over Kit
Default Front Sway Bar
1.125" Sway Bar
Default Rear Leaf Spring
2" Multi-Leaf Drop Leaf Spring
Front Brake Kit Included
Yes
Front Caliper Piston Diameter
2.95
Front Caliper Piston Qty
1
Front Coil Over Included
Yes
Front Height Adjustment Max
-2.5
Front Height Adjustment Min
-1
Front Rotor Diameter
11
Front Spindle Included
Yes
Front Spring Choices
350LB (LS With Aluminum Block), 450 LB (Small Block or LS With Iron Block), 550LB (Big Block)
Front Sway Bar Included
Yes
Leaf Spring Choices
2" Multi-Leaf Drop Spring, Stock Height Multi-Leaf Spring
