Vintage Air Monster 1967-69 Camaro 19 Inch 850W CustomFit Brushless Fan Kit 371253

Vintage Air Monster 1967-69 Camaro 19 Inch 850W CustomFit Brushless Fan Kit 371253
Vintage Air Monster 1967-69 Camaro 19 Inch 850W CustomFit Brushless Fan Kit 371253Vintage Air Monster 1967-69 Camaro 19 Inch 850W CustomFit Brushless Fan Kit 371253
$1,274.99 ea
NEWARRIVING SOONEstimated Ship Date 03/05/2025 (If Ordered Today)
Model: 5004955
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

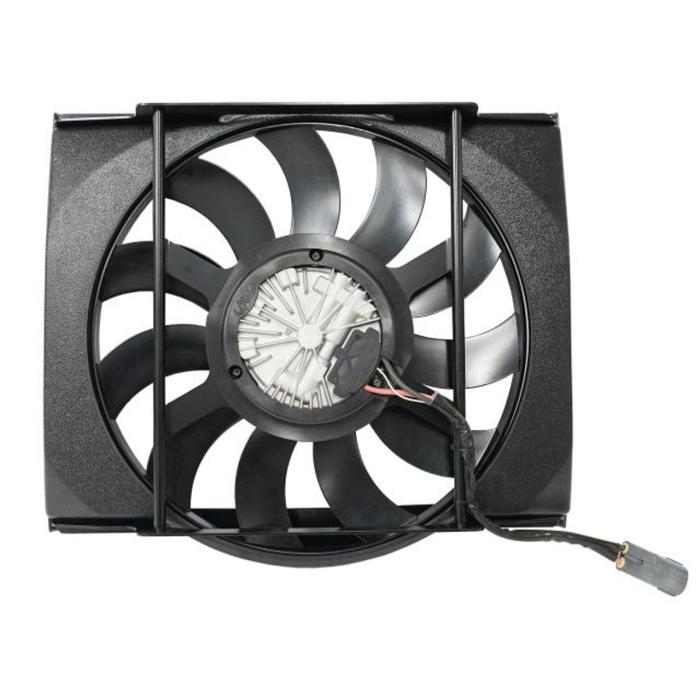

Vintage Air Monster Brushless fan and shroud combination 850 Watt 19" fan kit.

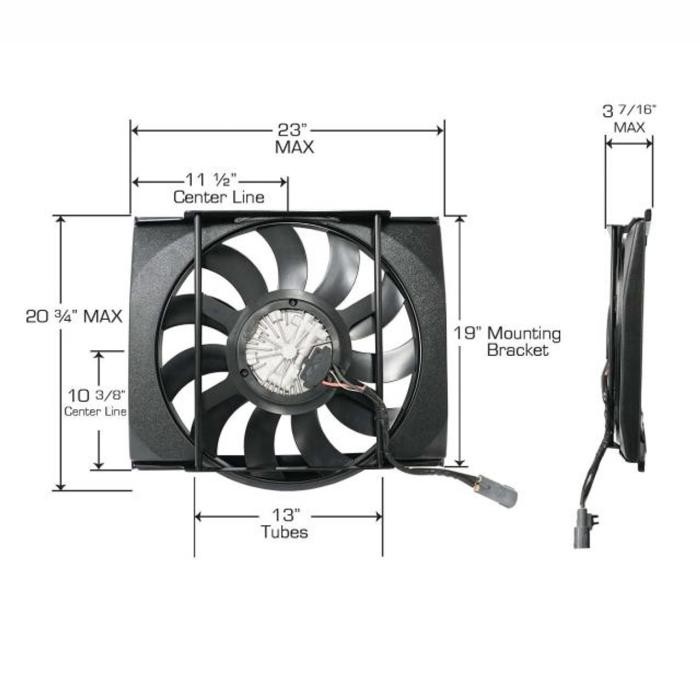

Brushless electric fan with custom shroud and powder coated tubular mounting bracket (see diagram for dimensions and clearance requirements). Mount vertically or horizontally. Includes heavy-duty 6-gauge power harness wiring kit with 100 amp MIDI fuse assembly.

  • 850 Watt Brushless Motor
  • 19" Fan
  • Laser cut powder coated bracket and frame

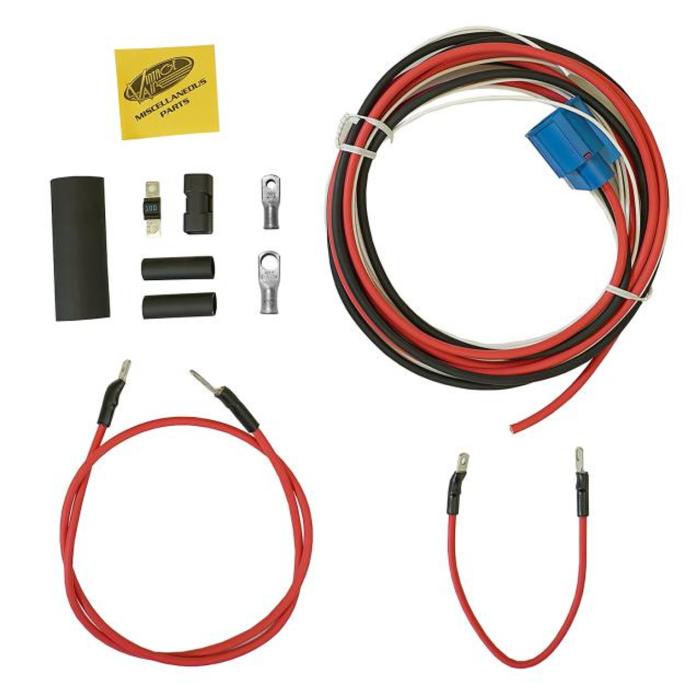

  • 6-gauge power harness kit with MIDI-Fuse assembly
  • Requires control harness (available separately based on engine thermostat temperature customer plans to use (or aftermarket engine controller).
  • Based on Walker radiator (22-7/8" x 22-7/8")



  • Designed from the ground up for primary engine and AC cooling duty.
  • Pulse width modulation control provides maximum cooling power available when you need it, automatically dials back as demand lessens.
  • Extremely long motor life ( up to 40,000 hr)
  • Waterproof (IP68).
  • Easy to install and set-up, stand-alone controllers available.
  • May be controlled by several aftermarket engine controllers (negative logic duty cycle definition@50-500 Hz).
  • Quiet operation (85 dBA at 1 m from the fan module - lateral side).
  • Laser cut, CNC bent and powder coated steel bracket with mounting hardware designed for specific vehicle applications.
  • Model specific ABS shroud gathers and directs air flow across the entire radiator face ensuring maximum

Application Note

NOTE: Fan is designed to be a puller only. Cannot be used as a pusher type fan.

NOTE: Requires temperature controller based on engine thermostat (see part numbers 113018 or 113019) or stand-alone controller.
About Vintage Air

Vintage Air, founded by Jack Chisenhall in 1976, is a San Antonio, Texas-based company specializing in the design and manufacture of high-performance aftermarket air conditioning systems for classic and late-model cars and trucks. Recognized as pioneers in the industry, they have been instrumental in developing climate control solutions tailored to the unique needs of automotive enthusiasts.

The company's product lineup includes the SureFit Series, which offers complete bolt-in, vehicle-specific climate control systems for classic and late-model muscle cars, restomods, and trucks. These systems are designed for easy installation, utilizing most of the factory sheet metal and body features. Additionally, Vintage Air provides the Builder Series, allowing customers to create custom climate control systems by selecting from various evaporators, controls, louvers, and accessories to best fit their specific build requirements.

Over the years, Vintage Air has earned a reputation for innovation and quality, becoming a trusted name among automotive enthusiasts and professional builders alike. Their commitment to excellence is evident in their comprehensive product offerings and dedication to customer satisfaction.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Chevy II 1967 - 1968
Chevrolet Nova 1969
